ReferenceData XML Schema
ws_event_type_f Complex Type
Description
This is the schema for all reference data elements for a specified Event Type.
Namespace urn:CoreOne.ReferenceData

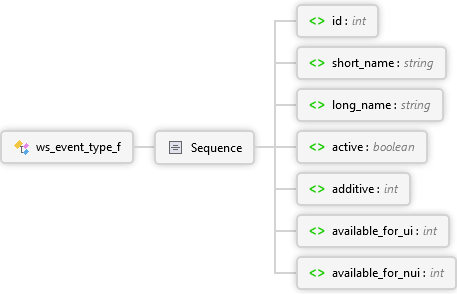

Diagram
available_for_nui Element available_for_ui Element additive Element active Element long_name Element short_name Element id Element Sequence ws_event_type_f Complex Type
Overview
ws_event_type_f
This is the schema for all reference data elements for a specified Event Type.
Sequence
id :int
This is an internal CoreOne id used to uniquely identify the specified Event Type.
short_name :string
This is the short code used for the specified Event Type.
long_name :string
This is the full name used for the specified Event Type.
active :boolean
This is a boolean value which flags whether the specified Event Type is currently active or inactive.
additive :int
This is the effect the Event Type has on the inventory of a Herd. Can be -1, 0 or +1.
available_for_ui :int
This indicates that the specified Event Type can apply to uniquely identified animals.
available_for_nui :int
This indicates that the specified Event Type can apply to non-uniquely identified animals.
Remarks

Source
See Also
ReferenceData XML Schema
