ReferenceData XML Schema
ws_medicine_f Complex Type
Description
This is the schema for all reference data elements for a specified Medicine.
Namespace urn:CoreOne.ReferenceData

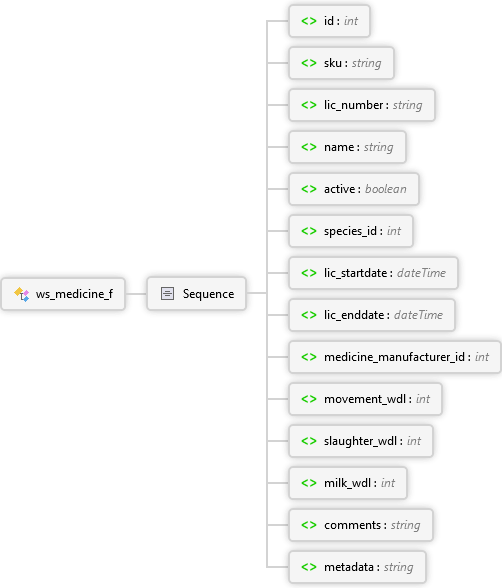

Diagram
metadata Element comments Element milk_wdl Element slaughter_wdl Element movement_wdl Element medicine_manufacturer_id Element lic_enddate Element lic_startdate Element species_id Element active Element name Element lic_number Element sku Element id Element Sequence ws_medicine_f Complex Type
Overview
ws_medicine_f
This is the schema for all reference data elements for a specified Medicine.
Sequence
id :int
This is an internal CoreOne id used to uniquely identify the specified Medicine.
sku :string
This is the sku code for the specified Medicine.
lic_number :string
This is the license number for the specified Medicine.
name :string
This is the full name(s) used for the specified Medicine.
active :boolean
This is a boolean value which flags whether the specified Medicine is currently active or inactive.
species_id :int
This is an internal CoreOne id used as a foreign key to link the Medicine to a certain Species.
lic_startdate :dateTime
This is the start date of the Medicine's license.
lic_enddate :dateTime
This is the end date of the Medicine's license.
medicine_manufacturer_id :int
This is an internal CoreOne id used as a foreign key to link the specified Medicine to a specific Medicine Manufacturer.
movement_wdl :int
This is the withdrawal time from when an animal cannot be moved after receiving the specified Medicine.
slaughter_wdl :int
This is the withdrawal time from when an animal cannot be slaughtered after receiving the specified Medicine.
milk_wdl :int
This is the withdrawal time from when a an animal cannot be milked after receiving the specified Medicine.
comments :string
These are any comments or remarks that have been made about any element within the specified Medicine record.
metadata :string
This is any metadata held about the specified Medicine.
Remarks

Source
