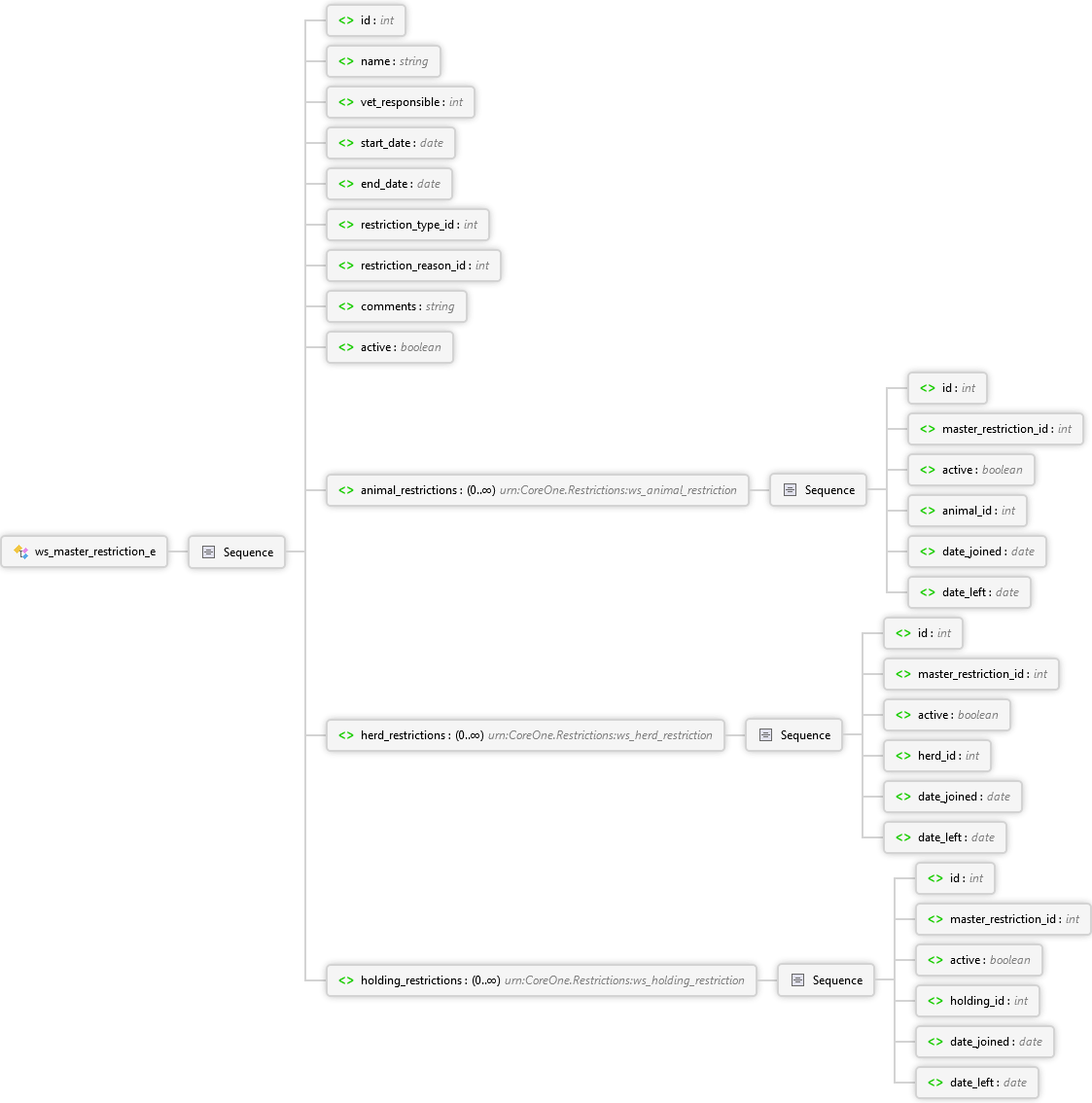

ws_master_restriction_e Complex Type

This is the schema used to display all data elements for one Master Restriction.

ws_master_restriction_e

This is the schema used to display all data elements for one Master Restriction.

Sequence

id :int

This is an internal CoreOne id used to uniquely identify the specified Master Restriction.

name :string

This is the name given to the specified Restriction.

vet_responsible :int

This is an internal CoreOne Person id. This is the veterinarian responsible for placing the restriction.

start_date :date

This is the date in which the Restriction was commenced.

end_date :date

This is the date in which the Restriction was lifted.

restriction_type_id :int

This is an internal CoreOne Restriction Type id. This is the type of Restriction that is placed.

restriction_reason_id :int

This is an internal CoreOne Restriction Reason id. This is the reason why the Restriction was placed.

comments :string

These are any comments or remarks that have been made about the specified Restriction.

active :boolean

This is a boolean value which flags whether the specified Restriction is currently active or inactive.

animal_restrictions 0..∞ ws_animal_restriction Complex Type

These are the details for any associated Animal Restrictions.

Sequence

id :int

This is an internal CoreOne id used to uniquely identify the specified Animal Restriction.

master_restriction_id :int

This is an internal CoreOne Master Restriction id used as a foreign key to link the Animal Restriction to a Master Restriction.

active :boolean

This is a boolean value which flags whether the specified Animal Restriction is currently active or inactive.

animal_id :int

This is an internal CoreOne Animal id used as a foreign key to link the an animal to the specified Animal Restriction.

date_joined :date

This is the date in which the animal was added to the Restriction.

date_left :date

This is the date in which the animal was removed from the Restriction.

herd_restrictions 0..∞ ws_herd_restriction Complex Type

These are the details for any associated Herd Restrictions.

Sequence

id :int

This is an internal CoreOne id used to uniquely identify the specified Herd Restriction.

master_restriction_id :int

This is an internal CoreOne Master Restriction id used as a foreign key to link the Herd Restriction to a Master Restriction.

active :boolean

This is a boolean value which flags whether the specified Herd Restriction is currently active or inactive.

herd_id :int

This is an internal CoreOne Herd id used as a foreign key to link the an herd to the specified Herd Restriction.

date_joined :date

This is the date in which the herd was added to the Restriction.

date_left :date

This is the date in which the herd was removed from the Restriction.

holding_restrictions 0..∞ ws_holding_restriction Complex Type

These are the details for any associated Premises Restrictions.

Sequence

id :int

his is an internal CoreOne id

master_restriction_id :int

This is an internal CoreOne Master Restriction id used as a foreign key to link the Premises Restriction to a Master Restriction.

active :boolean

This is a boolean value which flags whether the specified Premises Restriction is currently active or inactive.

holding_id :int

This is an internal CoreOne Holding id used as a foreign key to link the an premises to the specified Premises Restriction.

date_joined :date

This is the date in which the premises was added to the Restriction.

date_left :date

This is the date in which the premises was removed from the Restriction.

Restrictions XML Schema
