Restrictions XML Schema
animal_restrictions Element
Description
These are the details for any associated Animal Restrictions.
Namespace urn:CoreOne.Restrictions
Type
ws_animal_restriction Complex Type

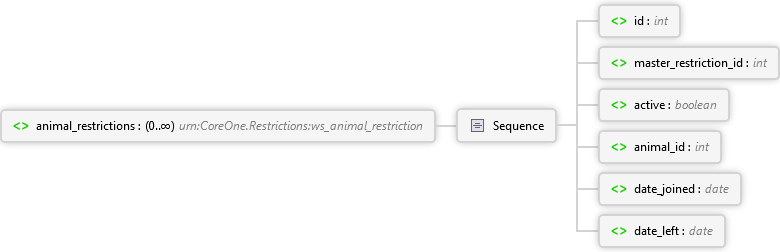

Diagram
date_left Element date_joined Element animal_id Element active Element master_restriction_id Element id Element Sequence animal_restrictions Element
Overview
animal_restrictions 0..∞ ws_animal_restriction Complex Type
These are the details for any associated Animal Restrictions.
Sequence
id :int
This is an internal CoreOne id used to uniquely identify the specified Animal Restriction.
master_restriction_id :int
This is an internal CoreOne Master Restriction id used as a foreign key to link the Animal Restriction to a Master Restriction.
active :boolean
This is a boolean value which flags whether the specified Animal Restriction is currently active or inactive.
animal_id :int
This is an internal CoreOne Animal id used as a foreign key to link the an animal to the specified Animal Restriction.
date_joined :date
This is the date in which the animal was added to the Restriction.
date_left :date
This is the date in which the animal was removed from the Restriction.
Remarks

Source
See Also
ws_master_restriction_e Complex TypeRestrictions XML Schema
